Cutting-Edge Audio Performance with the ESS Flagship DAC Chip
The SMSL RAW PRO-DAC1 features the newly developed American ESS flagship ES9039MSPRO DAC chip, delivering exceptional audio fidelity. It comes with built-in MQA decoding and supports MQA & MQA-CD playback through USB, optical, and coaxial inputs. With MQA (Master Quality Authenticated) technology, listeners can enjoy the authentic sound of the original master recording in a compact and efficient format.
Advanced USB Technology with XMOS XU-316
Equipped with the 3rd generation XMOS XU-316 USB solution, the RAW Pro-DAC1 supports true 32-bit USB audio, DoP, and native DSD. It offers PCM support up to 768kHz and DSD playback up to DSD512, ensuring precise and high-resolution audio.
Precision Clock and Power Design
The low-phase noise crystal oscillator and optimized clock circuit minimize jitter, enhancing audio clarity. A specially designed low-noise power supply system provides clean and stable power to analog circuits for consistent performance.

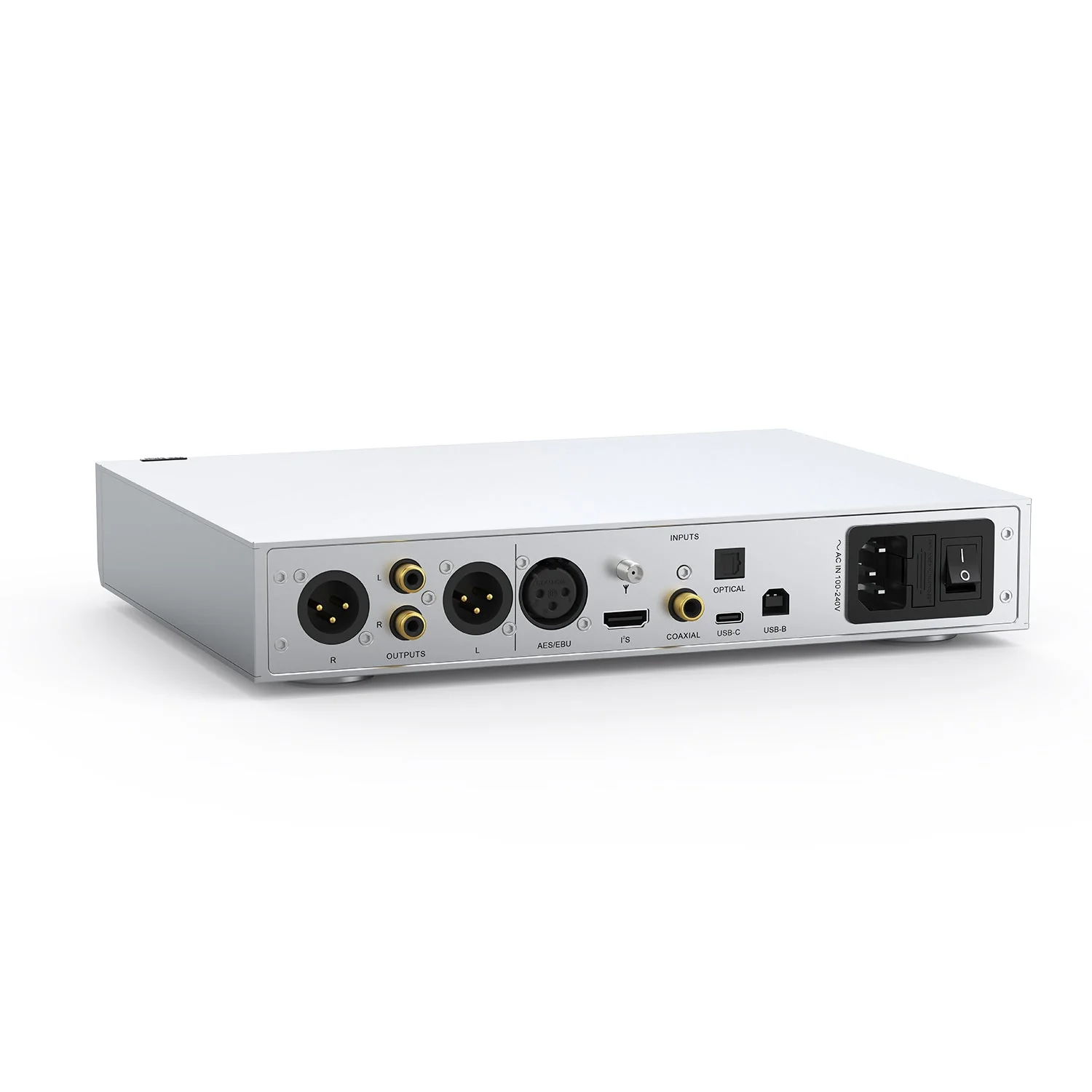

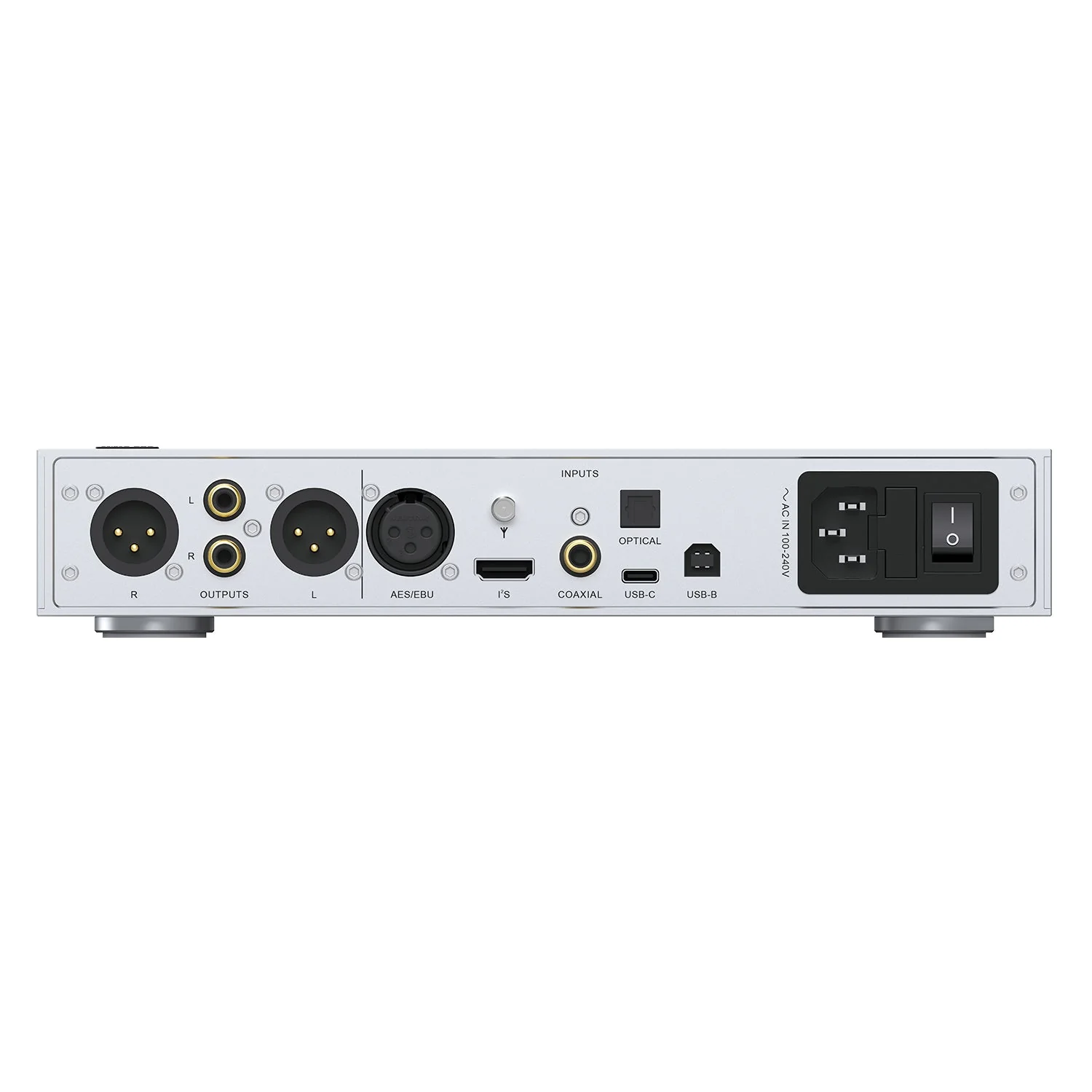

Versatile Input and Output Compatibility
Inputs: USB, Optical, Coaxial, Bluetooth, AES/EBU
Outputs: XLR, RCA
The device supports DSD transmission across all interfaces except Bluetooth, with compatibility for formats such as DoP64 via coaxial, optical, and AES/EBU inputs.
High-Quality Components and Design
Gold-Plated Terminals: Ensuring reliable connections and minimal signal loss.
Bluetooth 5.1: Supports LDAC (24bit/96kHz), aptX/HD, SBC, and AAC for wireless high-resolution audio.
Full-Featured Remote Control: Easy access to all functions.
Firmware Upgradeable for Future Enhancements
Users can independently update the firmware, ensuring access to the latest features and improvements.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Cutting-Edge Audio Performance with the ESS Flagship DAC Chip
The SMSL RAW PRO-DAC1 features the newly developed American ESS flagship ES9039MSPRO DAC chip, delivering exceptional audio fidelity. It comes with built-in MQA decoding and supports MQA & MQA-CD playback through USB, optical, and coaxial inputs. With MQA (Master Quality Authenticated) technology, listeners can enjoy the authentic sound of the original master recording in a compact and efficient format.
Advanced USB Technology with XMOS XU-316
Equipped with the 3rd generation XMOS XU-316 USB solution, the RAW Pro-DAC1 supports true 32-bit USB audio, DoP, and native DSD. It offers PCM support up to 768kHz and DSD playback up to DSD512, ensuring precise and high-resolution audio.
Precision Clock and Power Design
The low-phase noise crystal oscillator and optimized clock circuit minimize jitter, enhancing audio clarity. A specially designed low-noise power supply system provides clean and stable power to analog circuits for consistent performance.
Versatile Input and Output Compatibility
Inputs: USB, Optical, Coaxial, Bluetooth, AES/EBU
Outputs: XLR, RCA
The device supports DSD transmission across all interfaces except Bluetooth, with compatibility for formats such as DoP64 via coaxial, optical, and AES/EBU inputs.
High-Quality Components and Design
Gold-Plated Terminals: Ensuring reliable connections and minimal signal loss.
Bluetooth 5.1: Supports LDAC (24bit/96kHz), aptX/HD, SBC, and AAC for wireless high-resolution audio.
Full-Featured Remote Control: Easy access to all functions.
Firmware Upgradeable for Future Enhancements
Users can independently update the firmware, ensuring access to the latest features and improvements.
